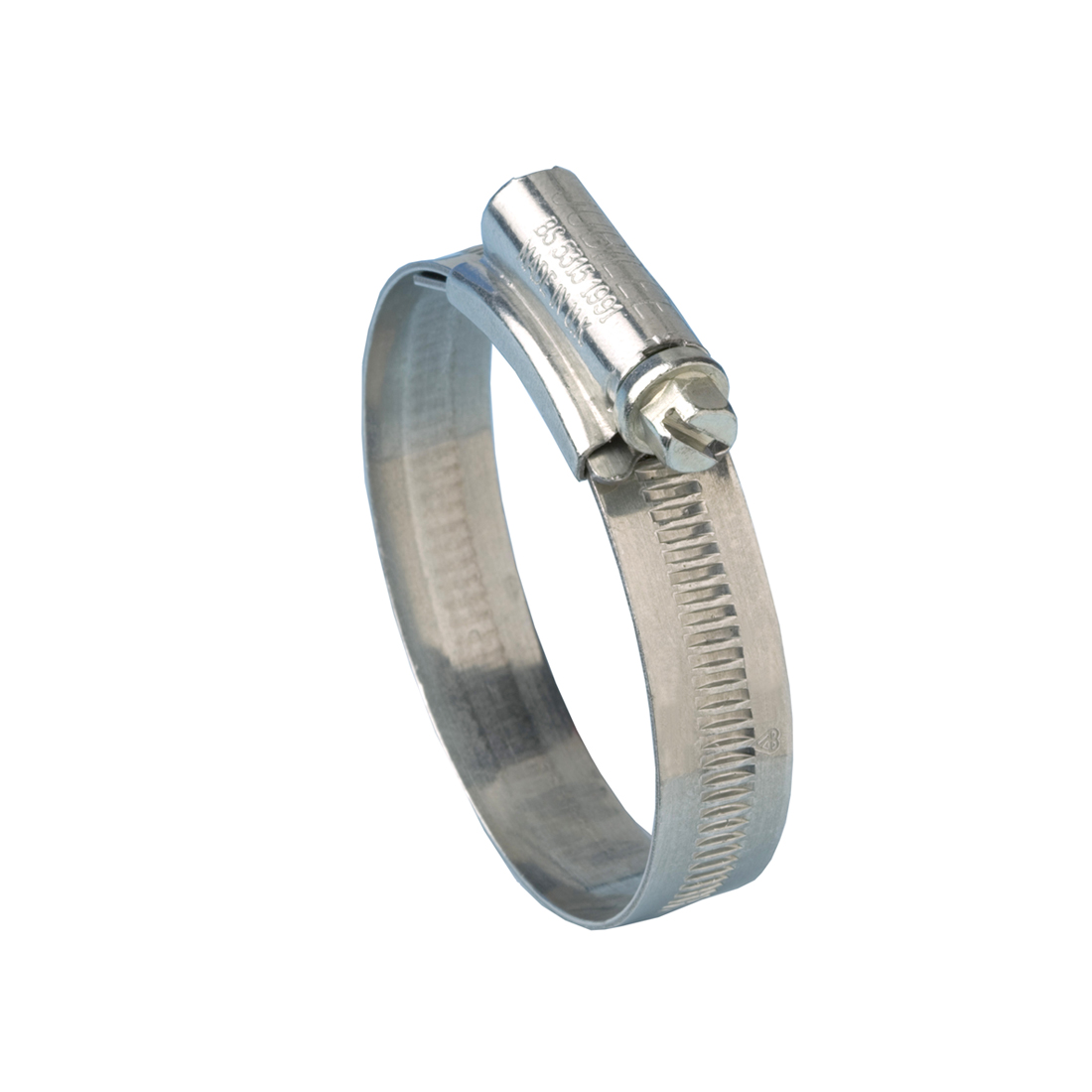

Jubilee Hose Clips Ace Brand Zinc Plated Quality Pipe Clamps

Description

Ace manufacture their hose clips to the very highest  standards, using only premium grade materials. Jubilee Clips have, over  the years, proven to be safe, durable and capable in combating extreme clamping conditions. – Unique Crimp housing ensures maximum thrust when tightening.- Exceeds BSI standards in all areas, providing excellent reliability- Professional clip finish looks great every time A hose clip might not be the most expensive part of an installation, but  if it fails the results could be disastrous. That is why Ace manufacture their hose clips to the very highest standards, using only  premium grade materials. Jubilee Clips have, over the years, proven to   be safe, durable and capable in combating extreme clamping conditions
Size Range Specification
Size Ref
Clip Range
Band Thickness
Band Width
Material
Screw Type
OOO
9.5mm – 12mm
0.762mm
9mm
Zinc Plated Steel
Slotted Hex Head
MOO
11mm – 16mm
0.762mm
9mm
Zinc Plated Steel
Slotted Hex Head
OO
13mm – 20mm
0.762mm
9mm
Zinc Plated Steel
Slotted Hex Head
O
16mm – 22mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
OX
18mm – 25mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
1A
22mm – 30mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
1
25mm – 35mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
1X
30mm – 40mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
1M
32mm – 45mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
2A
35mm – 50mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
2
40mm – 55mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
2X
45mm – 60mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
3
55mm – 70mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
3X
60mm – 80mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
4
70mm – 90mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
4X
85mm – 100mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
5
90mm – 120mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
6
110mm – 140mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
6X
120mm – 150mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
7
135mm – 165mm
0.914mm
13mm
Zinc Plated Steel
Slotted Hex Head
